photoelectric tracking positioning die-cutting machine

The photoelectric tracking and positioning die-cutting machine carries out photoelectric eye tracking, feeding, stamping and forming for all kinds of coil printing materials, automatically correcting deviation, and accurately positioning stamping and die-cutting (e.g. printing PET, face stickers, labels, films, silicone rubber, etc.).

Product Details

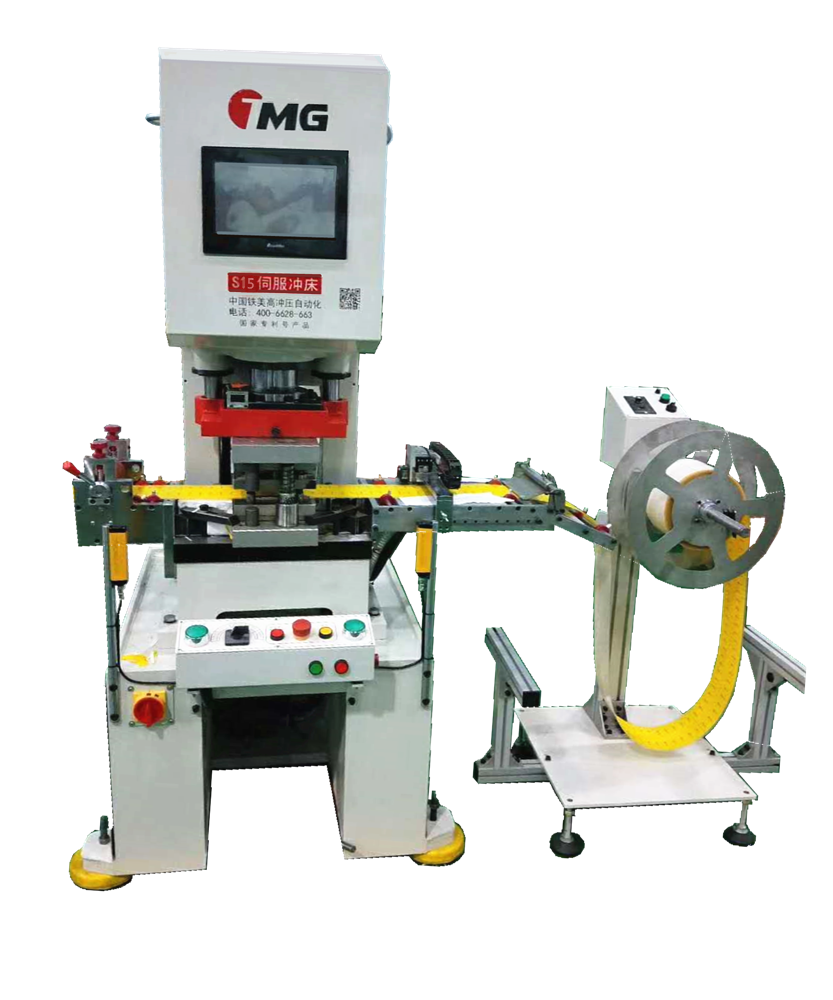

photoelectric tracking positioning die-cutting machine(图1)

Configuration: S() intelligent servo punch M2 (numerical control feeder) M9 (infrared safety speed regulation function) M13 (photoelectric positioning and tracking system) F6A (photoelectric induction automatic feeder)

Function: Photoelectric eye tracking, feeding and stamping for all kinds of coil printing materials, automatic correction, precise positioning and stamping die cutting (e. g. printing PET, face stickers, labels, film, silicone rubber, etc.). Widely used in all kinds of precision electronics, electrical appliances, automotive, medical, printing, packaging, jewelry and other industries. Can act on metal and non-metallic accessories die-cutting or stamping forming, can also be used for bulging or stretching operations.

Servo punch characteristics are introduced:

1, the use of integrated high-strength casting machine, stress relief, and the use of imported high-precision bearings to ensure long-term accuracy and high stability;

2. Three-round guide column slider structure, the slider is more stable up and down without deviation, and the vertical accuracy is stable;

3. The dynamic balance system can balance the vibration of the crankshaft and the slider during high-speed operation, effectively reduce the noise of the punch operation (silent operation), effectively control the stability of the bottom dead center, and greatly improve the life of the punch and the mold;

4. Servo overload protection device, overload automatic emergency shutdown, protect the safety of stamping machines and molds, and use it with confidence;

5. The electronic digital display die taller, with one-key die adjustment function, has a die adjustment precision of up to 0.01mm, which is safe, convenient and reliable;

6. The machine running transmission parts adopt centralized control and automatic forced lubrication system design, which can realize real-time control and self-protection function to ensure that the punch is extremely low in wear during high-speed operation.

After automation - Machining part of the product(non-metal) application examples
